🌟 32-Channel LED Stair Lighting Controller with PIR Motion & Daylight Sensors

Enhance your staircase with the 32-Channel LED Stair Lighting Controller, a sophisticated solution designed for both residential and commercial applications. This controller offers seamless integration with single-color LED strips, providing dynamic, motion-activated lighting that illuminates each step as you ascend or descend. Featuring dual PIR motion sensors and a daylight sensor, it ensures energy efficiency and safety by activating lights only when necessary.

📘 1. Product Description

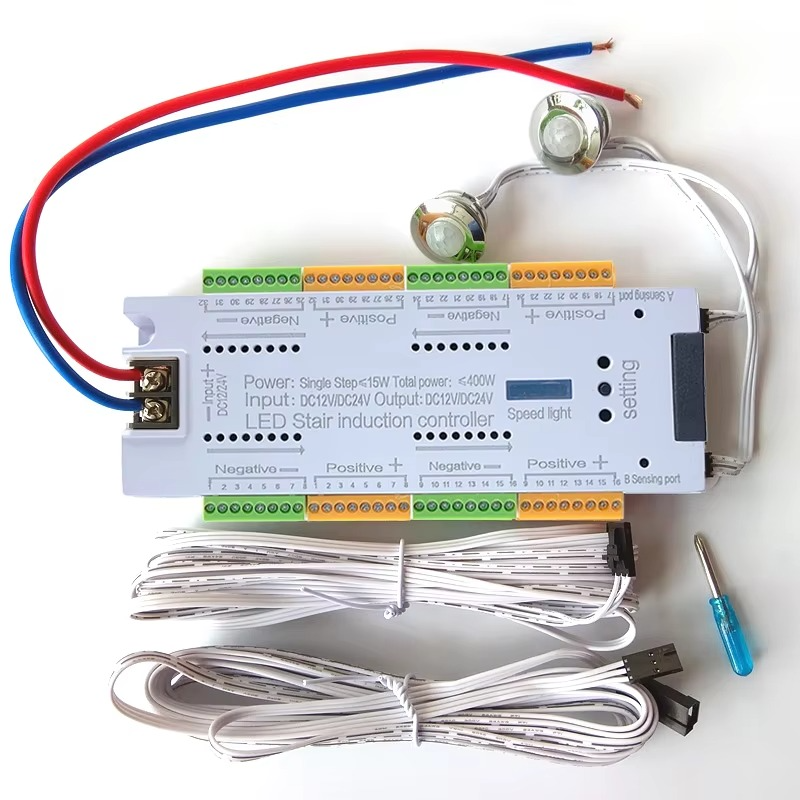

The 32-Channel LED Stair Lighting Controller is engineered to manage up to 32 single-color LED strips, making it ideal for creating a cascading lighting effect on staircases. Compatible with both DC 12V and DC 24V systems, it supports a total output power of up to 500W, accommodating various installation sizes and configurations.

Equipped with two PIR (Passive Infrared) motion sensors, the controller detects movement at both the top and bottom of the staircase. This allows for a step-by-step lighting sequence that follows the user's movement, enhancing both aesthetics and safety. The integrated daylight sensor prevents the lights from turning on when ambient light levels are sufficient, conserving energy.

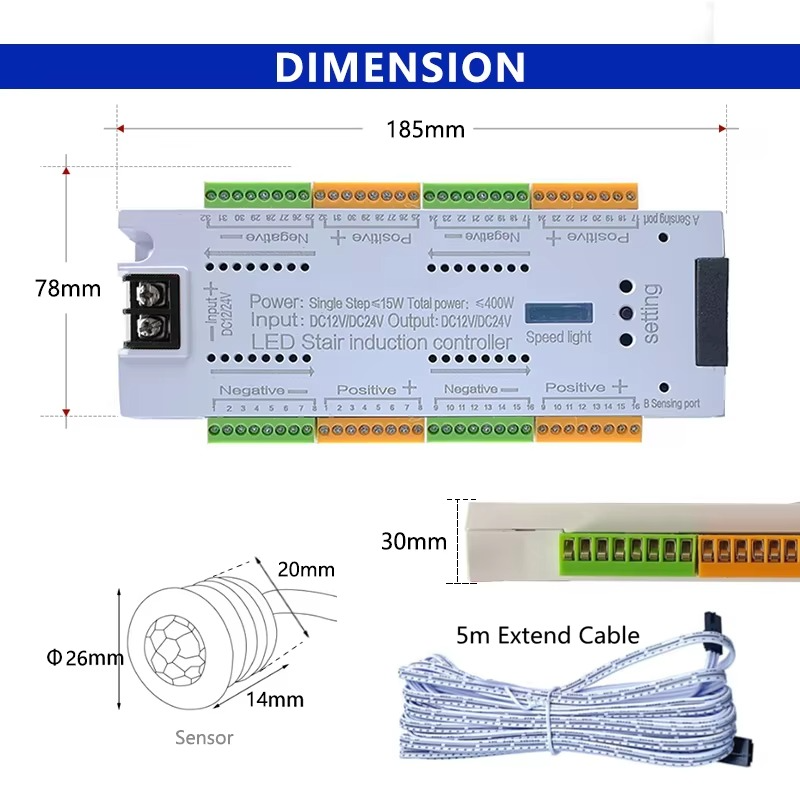

Designed for easy installation, the controller features terminal block connections, ensuring secure and reliable wiring. Its compact dimensions (185mm x 78mm x 19mm) allow for discreet placement within electrical enclosures or control panels.

📌 2. Key Features

✅ 32 Independent Channels: Control up to 32 single-color LED strips, enabling intricate lighting effects.

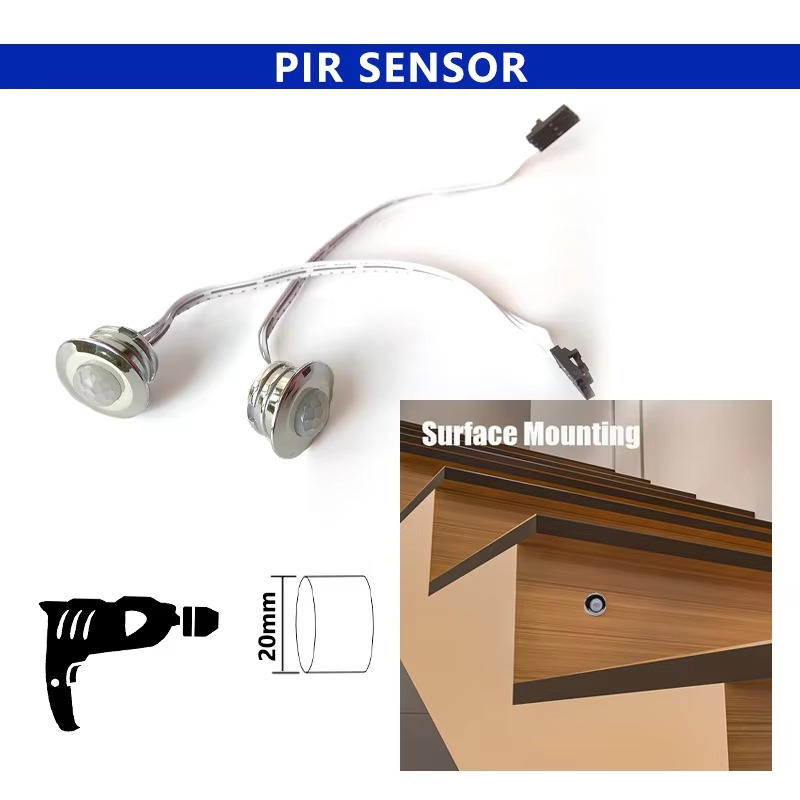

✅ Dual PIR Motion Sensors: Detect movement at both ends of the staircase for dynamic lighting sequences.

✅ Daylight Sensor Integration: Prevents lights from activating when ambient light is adequate, saving energy.

✅ Dual Voltage Support: Compatible with DC 12V and DC 24V systems, offering flexibility in installation.

✅ High Power Capacity: Supports a total output of up to 500W, suitable for various staircase sizes.

✅ Terminal Block Connections: Ensures secure and straightforward wiring for reliable operation.

✅ Compact Design: Dimensions of 185mm x 78mm x 19mm allow for discreet installation.

✅ Adjustable Lighting Speed: Customize the speed at which lights illuminate, enhancing user experience.

✅ Brightness Control: Adjust the brightness of each step to suit ambient lighting conditions.

✅ Flame-Retardant Housing: Constructed with materials that meet safety standards for electrical components.

💡 3. Benefits

🌙 Enhanced Safety: Motion-activated lighting illuminates each step, reducing the risk of accidents.

🎨 Aesthetic Appeal: Creates a visually appealing cascading light effect, adding elegance to your staircase.

🔋 Energy Efficiency: Daylight sensor ensures lights are only on when necessary, conserving energy.

⚙️ Customizable Experience: Adjustable lighting speed and brightness allow for personalized settings.

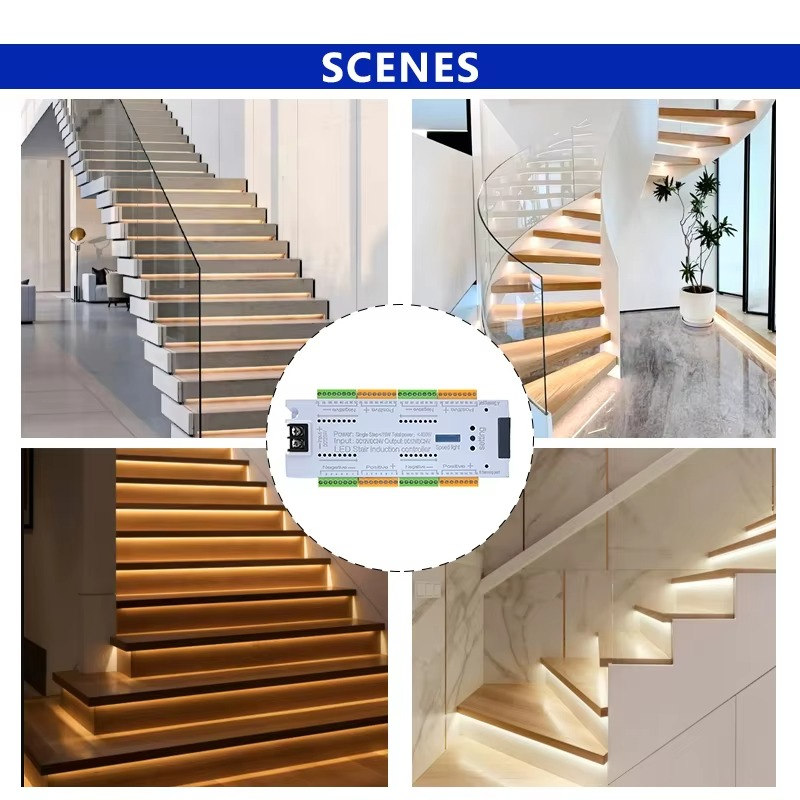

🏠 Versatile Application: Suitable for homes, offices, hotels, and other commercial spaces.

🔧 Easy Installation: Terminal block connections simplify the wiring process, reducing setup time.

🛡️ Durability: Flame-retardant housing ensures long-lasting performance and safety.

📦 Comprehensive Package: Includes controller, PIR sensors, and user instructions for a complete setup.

🌍 Environmentally Friendly: Energy-saving features contribute to a reduction in overall energy consumption.

🎯 4. Why Choose the 32-Channel LED Stair Lighting Controller

Selecting the right lighting controller is crucial for achieving the desired ambiance and functionality. The 32-Channel LED Stair Lighting Controller stands out due to its advanced features and user-friendly design.

The dual PIR motion sensors ensure that the lighting sequence follows the user's movement, creating a seamless and intuitive experience. The integration of a daylight sensor prevents unnecessary energy consumption, making it an environmentally friendly choice.

With support for both DC 12V and DC 24V systems, the controller offers flexibility to suit various installation requirements. Its high power capacity of up to 500W ensures compatibility with larger staircases, accommodating up to 32 steps.

The compact design and terminal block connections simplify installation, making it accessible for both professionals and DIY enthusiasts. The flame-retardant housing adds an extra layer of safety, meeting industry standards for electrical components.

📝 5. Conclusion

The 32-Channel LED Stair Lighting Controller is an advanced solution for enhancing staircase safety and aesthetics. Its motion-activated lighting, coupled with daylight sensing and customizable settings, provides a dynamic and energy-efficient lighting experience. Whether for residential or commercial applications, this controller offers a reliable and stylish way to illuminate your staircase.
