📡 ATU‑100 Mini Automatic Antenna Tuner – 1.8~55MHz with Housing & 0.96" Display

📝 Description

The ATU‑100 Mini Automatic Antenna Tuner is a compact, high-performance tuner designed for amateur radio operators, shortwave enthusiasts, and RF experimenters who demand accuracy, speed, and reliability in antenna matching. Operating across a wide frequency range from 1.8MHz to 55MHz, this tuner covers HF bands from 160m to 6m, making it ideal for virtually all HF operations.

With a smart digital interface, 0.96-inch OLED display, and pre-installed protective housing, this tuner is engineered for both mobile and base station setups. Whether you're working from a home shack or in the field, the ATU-100 automatically matches your antenna to your transceiver, optimizing power output and reducing SWR without manual tuning.

The device is based on the design principles of N7DDC (a renowned open-source antenna tuner project), ensuring community-tested reliability. Built with microcontroller intelligence, fast matching algorithms, and quality relays, it supports QRP to mid-level power applications (up to ~100W with optional mods) and is well-suited for SSB, CW, and digital modes like FT8, PSK31, and RTTY.

Its efficient design makes the ATU-100 tuner not only cost-effective but also incredibly reliable for daily radio communication. From DX chasing to emergency operations, this compact tuner is an essential part of your HF setup.

📌 Key Points

• 🌐 Wide Tuning Range: 1.8MHz – 55MHz (160m–6m HF Bands)

• 🔄 Automatic Matching: Tunes antenna and transmitter interface instantly

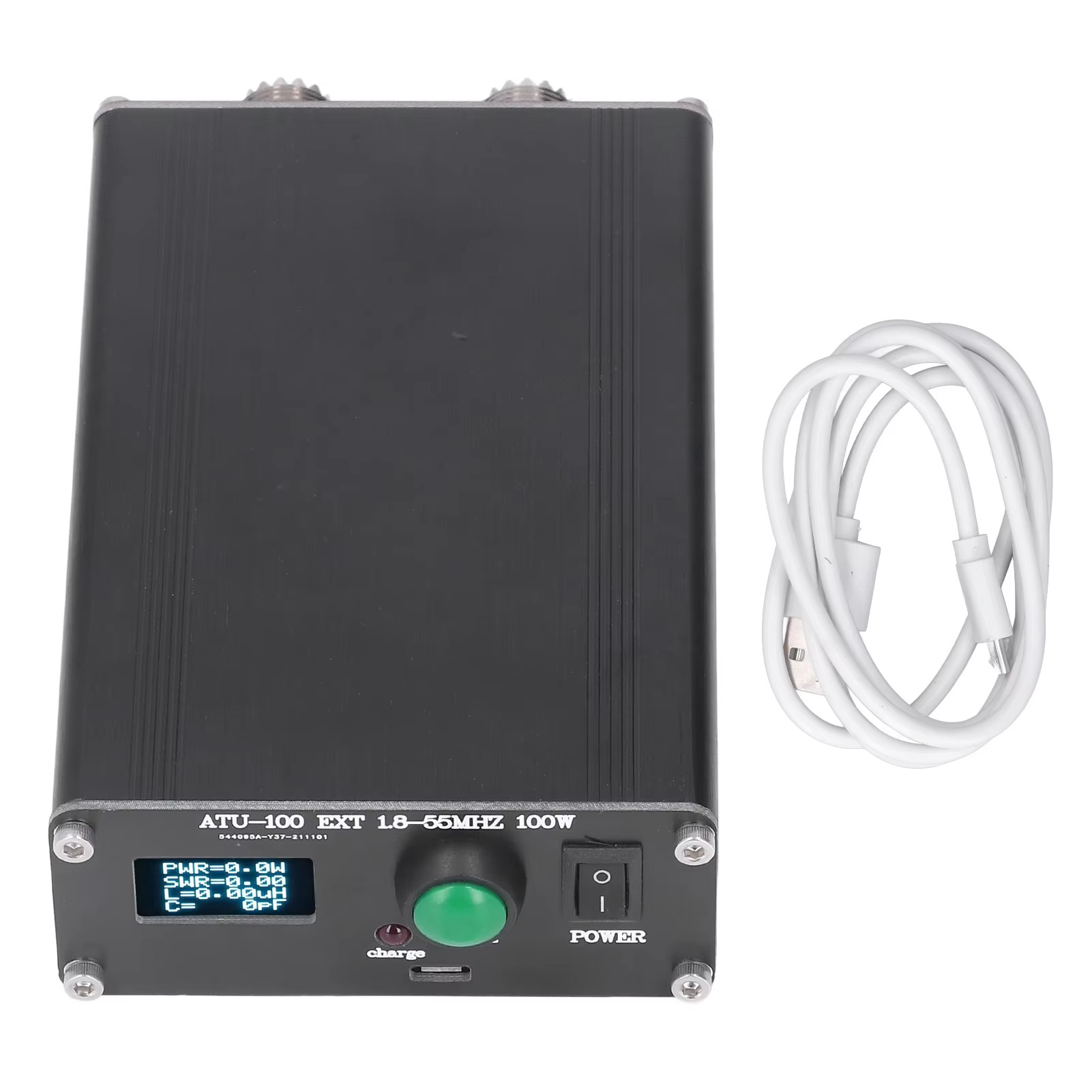

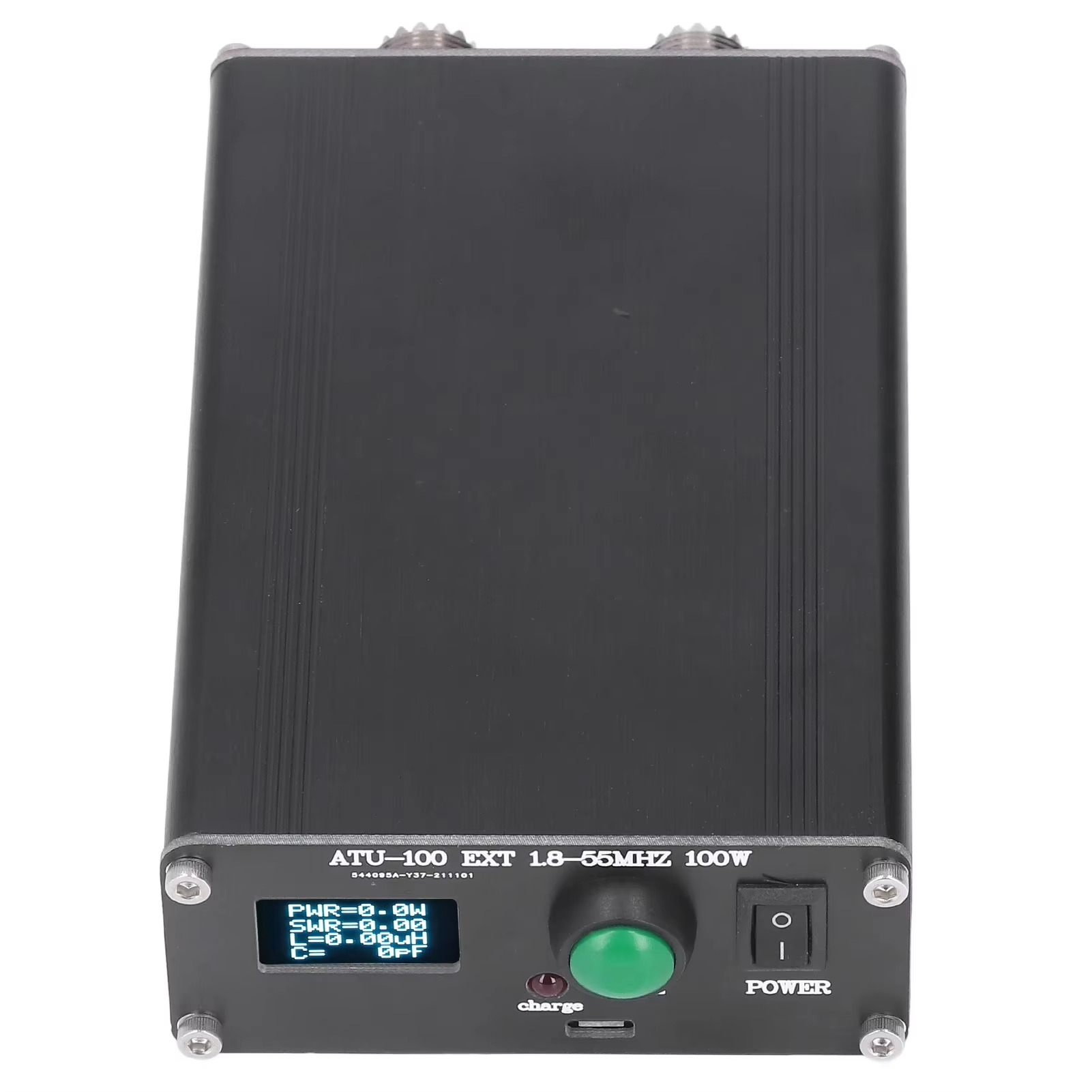

• 🖥️ OLED Display: 0.96” screen for real-time status, SWR, frequency, and tuning feedback

• ⚙️ Microcontroller-Controlled: Fast tuning logic, accurate matching

• 🏠 Durable Housing: Pre-installed shell for protection and heat resistance

• 🧲 Inductor and Capacitor Switching: Efficient LC tuning architecture

• 🔋 Low Standby Power: Power efficient; only draws current during tuning

• 🔧 Plug & Play Installation: Simple setup, ready to integrate with any HF rig

• 🛠️ Community Proven Design: Based on trusted N7DDC open-source schematics

• 🎯 Compact & Portable: Ideal for QRP kits, mobile HF stations, and emergency comms


💎 Benefits

📡 Broad Frequency Compatibility

Covering the most common ham bands (160m through 6m), the ATU‑100 makes it easy to tune wire antennas, verticals, dipoles, end-feds, and non-resonant loads without needing manual tweaking or multiple coils.

⚡ Protects Your Equipment

The ATU‑100 reduces high SWR (Standing Wave Ratio), protecting your transmitter and final amplifier stages. It ensures your rig transmits maximum power without reflections that can harm components.

🖥️ Intuitive Display with Real-Time Feedback

The 0.96-inch OLED screen offers vital data such as SWR, capacitor/inductor configuration, and tuning status. This transparency helps users monitor performance and adjust antennas if needed.

🧠 Hands-Free, Instant Tuning

Once connected, the tuner automatically finds the optimal match when RF is applied. It tunes in seconds, making it ideal for rapid band changes, digital contests, or field conditions where speed matters.

🧳 Compact & Rugged Design

Despite its sophisticated circuitry, the tuner fits in your palm. The aluminum or plastic enclosure (varies by model) keeps internal components safe from RF noise, dust, and heat.

🔌 Plug-and-Play Simplicity

There’s no need to configure settings manually. Just insert it between your transceiver and antenna system and apply RF—the ATU‑100 takes over. No tuning knobs, no guesswork.

🔧 Customizable for Advanced Users

As it’s based on open-source hardware, advanced operators can tweak the firmware, upgrade relay banks, or reprogram for different power levels. Enthusiasts love its hackable nature.

🧭 Ideal for Remote and Portable Operation

For SOTA (Summits on the Air), POTA (Parks on the Air), emergency communications, or off-grid DXing, this tuner is a game-changer. It fits in any go-bag or deployment kit.

🔇 Silent Operation

The relays only click during tuning. Unlike older tuners with continuous mechanical noise, this one operates quietly, perfect for late-night sessions or stealth operations.

🎁 Incredible Value for Price

Compared to high-end automatic tuners from mainstream brands, the ATU‑100 offers premium functionality at a fraction of the cost, while still delivering accurate, stable tuning.

💡 Why Choose This?

🧠 Designed by the Community, Perfected by Users

Built upon the trusted design by N7DDC, this tuner has been tested worldwide. It's praised for accuracy, speed, and compatibility with hundreds of HF radio setups.

🔄 Unmatched Convenience

Say goodbye to manual knobs and SWR charts. This tuner remembers previous settings and recalls them instantly when you revisit a band or frequency.

📦 Comes Preassembled and Enclosed

Unlike many kits that require soldering and housing installation, this model is ready to use out of the box. Plug it in, key your mic or start your FT8 session—done!

🔥 Great for QRP and Full HF Users

Whether you're using a 5W QRP rig like the Xiegu G90 or a 100W rig like the ICOM IC-7300, the tuner handles loads effectively with minimal losses. (Note: Verify max power handling per model.)

🔧 Future-Proof and Firmware Upgradable

The tuner supports firmware updates via USB or programmer (on applicable boards), allowing you to add new features, fix bugs, or enable custom functionality.

🎯 Precision Matching for Any Load

Match odd-length dipoles, ladder line-fed antennas, and even temporary wires strung in trees. The ATU‑100 is flexible enough to make nearly anything resonate.

🏁 Conclusion

The ATU‑100 Mini Automatic Antenna Tuner (1.8~55MHz) is a high-precision, ultra-portable device that makes amateur radio operating more efficient and enjoyable. With real-time tuning, wide-band compatibility, OLED feedback, and a housing included, this device combines the sophistication of top-tier tuners with the simplicity and accessibility needed for both beginners and veterans.

Whether you’re chasing DX from your shack, experimenting in your backyard, or deploying in the wilderness, this tuner ensures your signal is efficient, safe, and reliable—no matter the band or antenna. Backed by proven design architecture and open-source adaptability, the ATU‑100 belongs in every serious ham's toolbox.
