💡 LED Tester Output 0-230V – Universal TV LED Backlight Strip Tester (Supply Voltage: 220V)

The LED Tester Output 0-230V is a must-have diagnostic tool for professional technicians, DIY enthusiasts, and electronic repair hobbyists. Designed for accurate testing and rapid troubleshooting of LED backlight strips in TVs, monitors, laptops, and other LED-powered display panels, this device offers a wide output voltage range (0-230V), and operates on standard 220V AC input.

If you're dealing with LED strips that aren’t lighting up or want to verify the performance of new ones before installation, this tester provides safe, accurate, and efficient performance testing without the need for a power supply board or controller.

🔧 1. Product Description

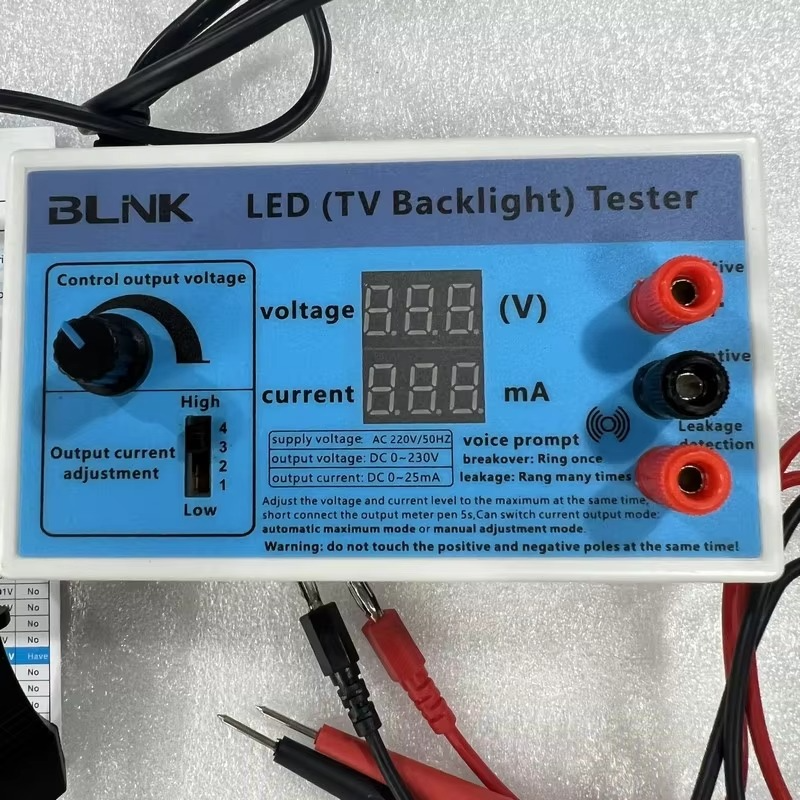

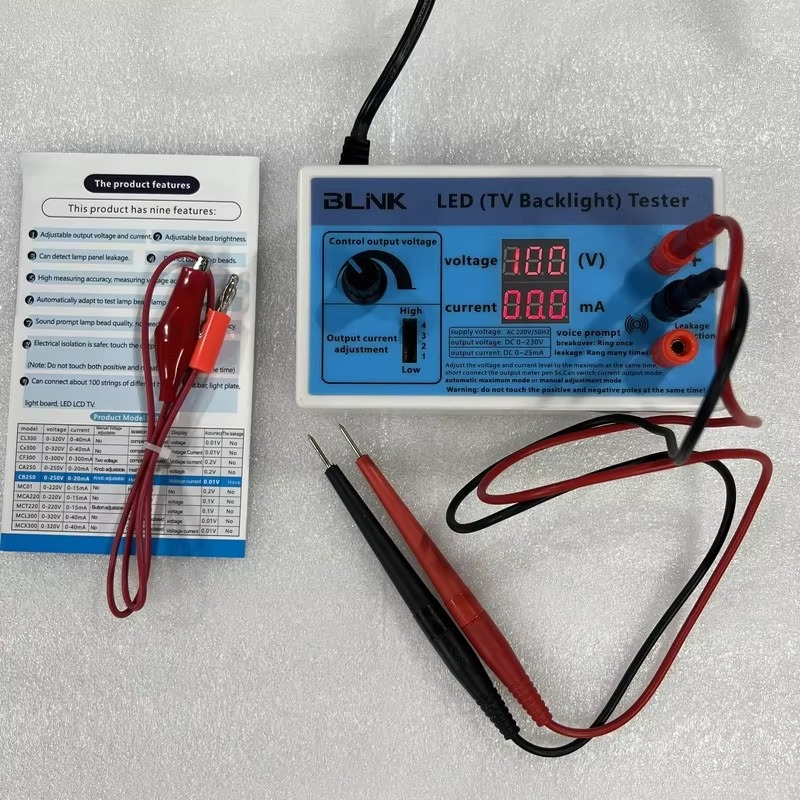

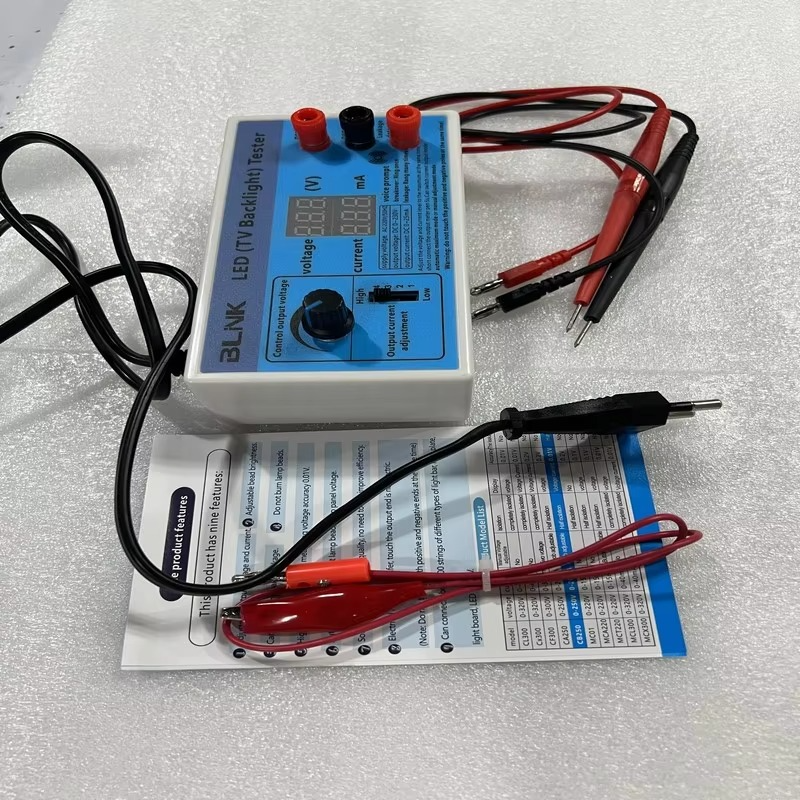

The Universal LED Tester is a compact and easy-to-use tool engineered for testing LED strips of various lengths, configurations, and voltages. It outputs 0V to 230V DC automatically based on the strip's needs, making it ideal for modern LED backlight systems found in flat-screen TVs, laptop displays, and other appliances.

Powered by 220V AC, the tester comes equipped with insulated test leads and LED protection features, making it safe to use, even for delicate low-voltage strips. The intelligent current-limiting feature ensures that it delivers only as much voltage as needed, thus preventing any damage to the LED strips during testing.

This tester is a universal tool for LED backlight repair professionals who want a quick, accurate, and portable solution for diagnosing LED strip issues without dismantling the whole TV panel or using complicated tools.

📐 Technical Specifications

🔌 Input Voltage: 220V AC
⚡ Output Voltage: 0V–230V DC (Auto-adjust)
🔋 Application: LED backlight strip testing (TVs, monitors, displays)
🧠 Function: Detect faulty LEDs, test voltage drop, determine brightness level
🔒 Safety Feature: Over-current and short-circuit protection

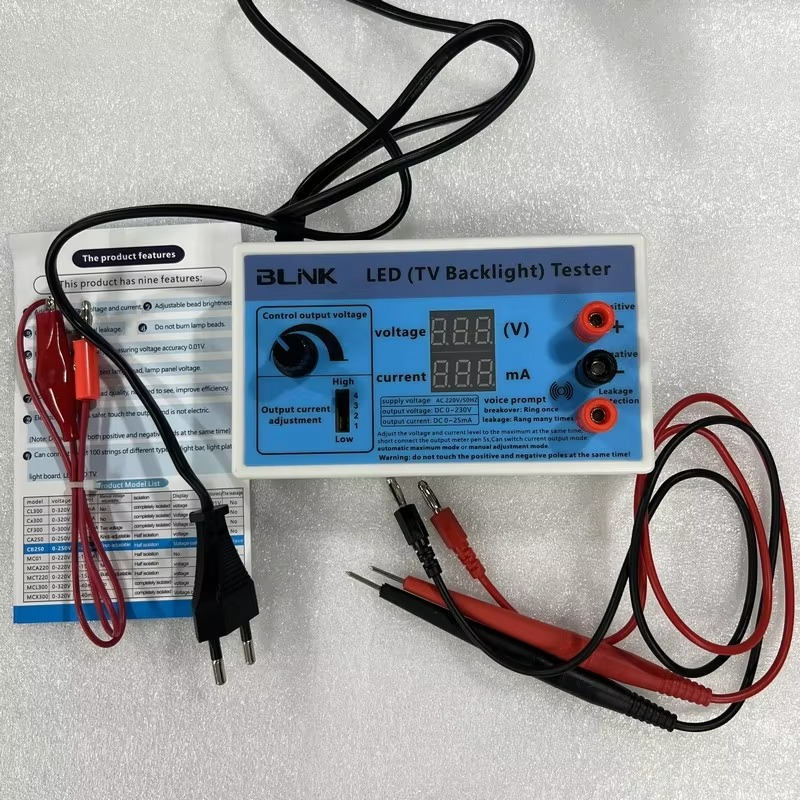

🧰 Accessories: Test leads, alligator clips
📦 Build Type: Compact plastic casing, lightweight, plug-and-play

🌟 2. Key Features

✅ Auto Voltage Detection – Automatically adjusts output voltage depending on the LED strip’s requirements, up to 230V.
✅ Safe Design – Intelligent current-limiting protection to prevent overloads and overheating during testing.
✅ Real-Time Brightness Check – Test LED brightness and performance in real time without needing a power supply board.

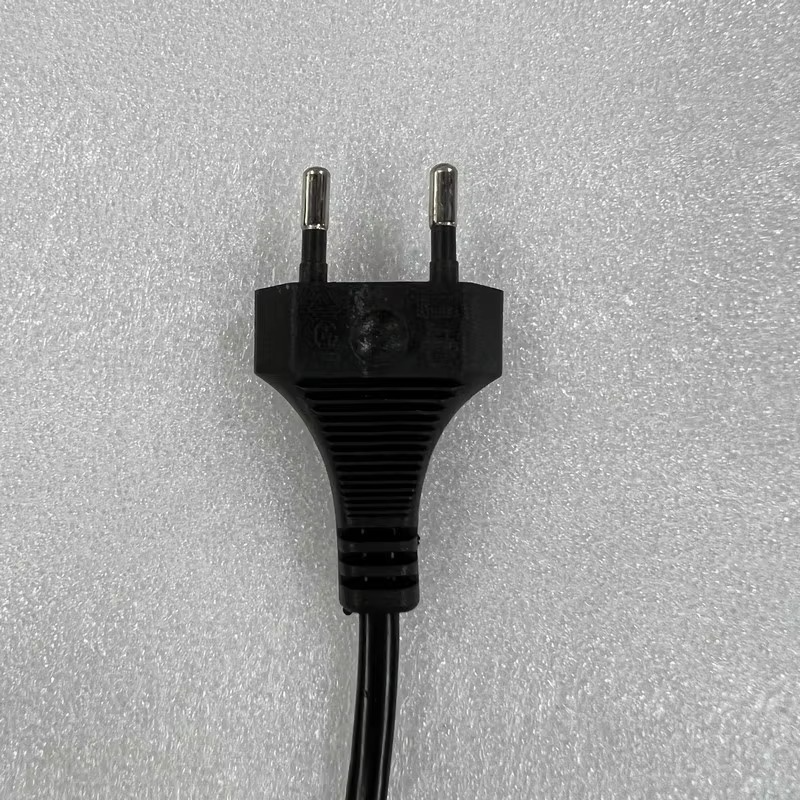

✅ AC Powered Convenience – Works directly from a standard 220V AC socket—no additional power supplies needed.
✅ Universal Compatibility – Works with single LEDs, LED beads, and entire backlight strips for various TV models.
✅ Compact & Lightweight – Small enough to carry anywhere and use on the go in any workshop or field environment.
✅ Fast Fault Detection – Identify dead, dim, or shorted LEDs within seconds, saving hours in disassembly and guesswork.
✅ Insulated Test Leads – Comes with quality test cables for safe operation and minimal electrical risk.
✅ No Polarity Concerns – The tester automatically handles forward voltage and current flow; just clip and test.
✅ Plug-and-Play Operation – Simply connect to AC power and start testing immediately—no configuration required.

🧰 3. Benefits

🔍 Quick Diagnosis
This LED tester saves valuable time by allowing you to check LED strips without removing them from the panel. Technicians can verify whether a strip or an individual LED is faulty in just seconds.

🧠 Smart Safety Controls
Built-in smart circuitry controls the output voltage and current, automatically matching the LED requirements. This prevents overvoltage issues and potential damage, especially with fragile or smaller strips.

🛠️ Simplifies Complex Repairs
Whether you’re fixing a large-screen LED TV or testing small LED beads, this tester streamlines the process by eliminating the need for disassembly or complex probing.

⚙️ Wide Voltage Range
The 0–230V range ensures compatibility with virtually all LED strips found in TVs and monitors—ranging from single low-voltage LEDs to high-voltage chains.

🔌 Standard 220V Operation
Plug into any household or workshop socket without needing adapters or external power units. The device is energy-efficient and consumes minimal power.

📦 Perfect for Workshops & Mobile Technicians
The compact design fits easily into toolboxes and can be taken onsite, giving mobile repair technicians a quick, effective way to diagnose LED issues.

🧪 Testing Flexibility
Test individual LEDs, full backlight strips, or multiple configurations. The LED tester’s versatility makes it a valuable tool across many device types.

💰 Cost-Effective Tool
A one-time investment in this LED tester can save hundreds of dollars in misdiagnosed parts, unnecessary replacements, and wasted time.

🧲 Works on Non-TVs Too
Also suitable for LED bars, signage lighting, lightboxes, and even industrial lighting repairs that rely on LED technology.

💡 4. Why Choose This LED Tester?

✅ Professional Accuracy Without Professional Cost
Engineered to deliver precise output voltages and test results without needing an expensive oscilloscope or multimeter.

✅ Built for All Skill Levels
Whether you're a hobbyist, student, beginner technician, or a seasoned pro—this tester is easy to understand and use safely.

✅ No More Guessing Games
The visible brightness output gives immediate visual confirmation of performance. No voltage meters or continuity tests required.

✅ Reduces Risk of Misdiagnosis
Say goodbye to replacing entire strips or power boards unnecessarily. This tool narrows down the exact component failure.

✅ Durability Meets Portability
A tough exterior protects the internal components, while the lightweight design ensures it’s easy to move from bench to fieldwork.

✅ Universal Plug Compatibility
Runs seamlessly on 220V AC systems found in most countries—making it the go-to tool for repair techs worldwide.

✅ Lifetime Usage Potential
With no moving parts and a simple design, this tester is built to last through thousands of uses without failure.

✅ Ideal for Educational Use
Perfect for classrooms or training environments teaching electronics repair, diagnostics, or LED fundamentals.

🔚 5. Conclusion

The LED Tester Output 0-230V is more than just a diagnostic device—it’s a critical addition to any electronics technician’s toolkit. With its auto-adjusting voltage, wide compatibility, built-in safety features, and plug-and-play usability, this tester makes diagnosing faulty LED strips faster, safer, and more efficient than ever before.

If you're tired of trial-and-error methods or wasting time on full disassembly just to find one dead LED, this tester is your solution. Affordable, reliable, and durable, it bridges the gap between guesswork and professional precision.

Whether you're a TV repair technician, LED light manufacturer, educator, or DIY electronics enthusiast, this device empowers you to diagnose, repair, and optimize LED backlight systems confidently.

Let your repair process shine bright—because your tools should work as efficiently as you do.
